很多晶振的編碼涵蓋品牌,型號,頻率,精度,負載/電壓,溫度,阻抗等信息。愛普生晶振編碼無源晶振系列MHZ所采用的前三個字均為“X1E”表示,而KHZ系列則是“X1A”表示,愛普生有源晶振則是用的“X1G”所表示的.這樣看來是不是挺有規律的呢,第一眼就可以知道這款晶振編碼是有源還是無源系列.

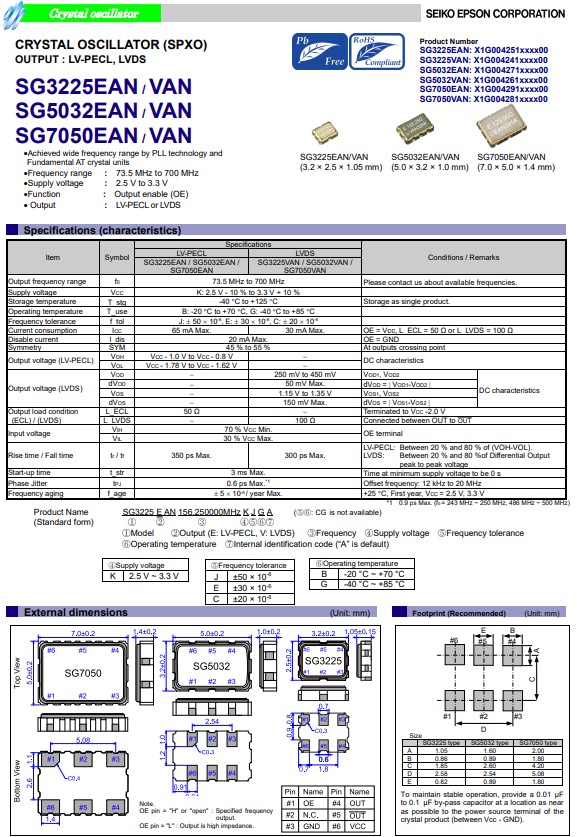

日本進口愛普生晶振SG3225EAN，是一款LV-PECL輸出差分貼片晶振，小體積晶振3.2x2.5mm六腳貼片晶振，有源晶振，低電源電壓2.5V至3.3V，寬頻率范圍73.5MHz至700MHz任意一頻點具有低電源電壓，滿足產品低消耗電流特點。其中編碼X1G004251003200，頻率為:150.000MHz，頻率容差:±30ppm，該產品有源晶振具有超小型，輕薄型，低抖動，低功耗，低耗能，低損耗，低電平，低相位噪聲等特點，廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、藍牙智能燈控制模塊，10G以太網及各種頻率控制設備上。
低功耗藍牙智能燈控制模塊晶振SG3225EAN有源晶振X1G004251003200,X1G004251006200,差分晶振

石英晶振	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G004251000100	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251000200	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251000900	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251001200	SG3225EAN	75.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251001500	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002000	SG3225EAN	700.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002100	SG3225EAN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002400	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002600	SG3225EAN	400.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002800	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003200	SG3225EAN	150.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003400	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003500	SG3225EAN	312.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251006200	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C

X1G004251010000	SG3225EAN	114.285000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012100	SG3225EAN	161.132812MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012200	SG3225EAN	155.520000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251012300	SG3225EAN	133.330000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012400	SG3225EAN	322.562500MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012500	SG3225EAN	133.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012600	SG3225EAN	322.265625MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012700	SG3225EAN	425.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012800	SG3225EAN	156.253906MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013100	SG3225EAN	360.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251013200	SG3225EAN	644.531200MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013800	SG3225EAN	644.531250MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013900	SG3225EAN	121.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251014000	SG3225EAN	650.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

低功耗藍牙智能燈控制模塊晶振SG3225EAN有源晶振X1G004251003200,X1G004251006200,差分晶振
差分晶振常見的是3225晶振,5032晶振,7050晶振三種封裝尺寸,文中所列舉的是愛普生5x7體積的部分差分晶振編碼.均為較高的頻率點,為輸出LVDS方式,電源電壓范圍2.5V/3.3V,振蕩啟動時間在電源電壓最低時,所需時間為0秒.愛普生差分晶振具有性能強,精密穩定,低電壓的特征,普遍用于對于高速網絡要求的應用.
